Annotating Spectrograms

Annotation is the process of manually identifying sounds of interest within an audio clip and labeling them. Annotation is possible within viewSpec() by setting the arguments interactive=TRUE and annotate=TRUE.

viewSpec

function (clip, interactive = FALSE, start.time = 0, units = "seconds",
    page.length = 30, annotate = FALSE, anno, channel = "left",
    output.dir = getwd(), frq.lim = c(0, 12), spec.col = gray.3(),
    page.ovlp = 0.25, player = "play", wl = 512, ovlp = 0, wn = "hanning",
    consistent = TRUE, mp3.meta = list(kbps = 128, samp.rate = 44100,
        stereo = TRUE), main = NULL, ...)
NULL

As with the default of annotate=FALSE you set interactive=TRUE to allow paging, zooming, annotation, and other interactive actions. The annotation argument adds an ‘a’ option to the list on the console.
With annotate=TRUE the spectrogram viewer essentially splits into two modes. In ‘browse’ mode the navigation options are presented in the console to zoom and page the spectrogram. In ‘annotate’ mode sounds of interest are repeatedly selected and named. To start annotate mode type an a in the console and press Enter. The function will stay in annotate mode until you actively exit by right-clicking twice in the graphics window.

# use the interactive and annotate option

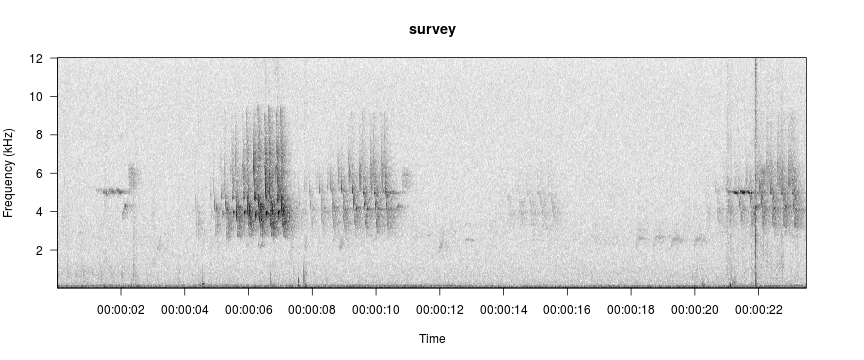

annos <- viewSpec(survey, interactive=TRUE, annotate=TRUE)

Starting a new annotation file.
Reading file...
Enter:
  a to annotate,
  d to delete annotations,
  n(m) for next page,
  b(v) for previous page,
  p to play,
  z to zoom in,
  x to zoom out,
  s to save page as wave file,
  c to change spectrogram parameters,
  q to exit

The workflow is as follows:

1. Page through a spectrogam looking for songs of interest and playing audio as necessary.
2. When one or more songs of interest are in the graphics window, type a in the console to enter annotate mode.
3. Select the first song by clicking once each in the upper-left and lower-right. A rectangle will appear around your selection, and in the console you will be prompted to assign a name to the event and press Enter.
4. Repeat for other sounds of interest in the graphics window. Rather than repeatedly typing the same label in the console, you may press Enter to apply the most recently used label.
5. Right-click twice in the graphics device to exit annotate mode and return to browse mode.
6. To end your session, type q in the console and press Enter. You will be prompted to enter a name for your annotation file in the console and press Enter. If you exit the function by pressing Ctrl+C or Esc rather than typing a q in the console your annotations will be saved in a temporary file named TMPannotations.csv in the working directory. They are also returned invisibly.

To load existing annotations, specify a file path to a csv file with the anno argument.

data(survey)
data(survey_anno)
write.csv(survey_anno, 'annos.csv', row.names=FALSE)
viewSpec(survey, annotate=TRUE, anno='annos.csv')

Reading file...

Enter:
  a to annotate,
  d to delete annotations,
  n(m) for next page,
  b(v) for previous page,
  p to play,
  z to zoom in,
  x to zoom out,
  s to save page as wave file,
  c to change spectrogram parameters,
  q to exit
Save annotations with same file name (possibly different output.dir)? (Y/n)
File name for annotations (include '.csv'):
Annotations not saved.  BUT they are in 'TMPannotations.csv' until written over.

Values stored by the annotate mode are placed in a data frame:

survey_anno

##   start.time end.time min.frq max.frq name
## 1      1.059    2.586  3.6105  6.3526 BTNW
## 2      4.209    7.407  2.5839  9.5447 OVEN
## 3      7.552   10.702  2.6261  9.3338 OVEN
## 4      9.850   11.056  3.8777  6.2542 BTNW
## 5     13.836   15.845  2.8230  6.3948 OVEN
## 6     20.698   23.366  3.0339  9.5166 OVEN
## 7     20.891   22.289  4.0183  6.3104 BTNW

Annotations are valuable for a variety of purposes that includes evaluating your templates, which will be covered elsewhere.
